Impuls (HTL, TTL)

Products found: 18

Hier findet man Inkrementalwandler, die zur Konvertierung von Zählimpulsen in analoge oder parallele Normsignale und serielle Formate dienen. Die gezeigten Geräte werden per Schnappmontage schnell und bequem auf einer Hutschiene im Schaltschrank befestigt.

LW213

Fiber Optic (Send-)Module for RS422 / HTL Signals (3000 m)

4 independent input channels with format A, B, C, D [HTL] or
A, /A, B, /B, C, /C, D, /D [RS422],
also possible for single channel
4 output channels with format A, B, C, D [HTL] or
A, /A, B, /B, C, /C, D, /D [RS422]
Maximum input frequency 1 MHz
Very short conversion time < 300 ns
Optical wavelength 1300 nm
Transmission distance up to 3000 meters
Power supply 5 VDC (for LW213)
Power supply 10 ... 30 VDC (for LW213-1, LW213-2, LW213-3)
Snap-on housing for top hat rail
(according to EN 60715)
Pre-configured optical fibers available
Option HT (= High Temperature) -40°C ... +75°C

LW215

Optical Fiber (Send-) Module for RS422 / HTL Signals (up to 2000 m)

4 independent input channels with format A, B, C, D [HTL] or
A, /A, B, /B, C, /C, D, /D [RS422], also possible for single channel
4 output channels with format A, B, C, D [HTL] or
A, /A, B, /B, C, /C, D, /D [RS422]
Maximum input frequency 1 MHz
Very short conversion time < 300 ns
Optical wavelength 850 nm
Transmission distance up to 2000 meter
Power supply 5 VDC (for LW215)
Power supply 10 ... 30 VDC (for LW215-1, LW215-2, LW216-3)
Snap-on housing for top hat rail
(according to EN 60715)
Pre-configured optical fibers available

Option HT (= High Temperature) -40°C ... +75°C

IT210

Level Converter, Directional Decoder and programmable Pulse Divider

Pulse input in format A, /A, B, /B, Z, /Z [RS422, HTL]
Pulse input in format A, B, Z [HTL]
Input frequency up to 1 MHz
Pulse output in format A, /A, B, /B, Z, /Z [RS422, HTL]
Pulse output in format A, B, Z [HTL]
Power supply 9 ... 30 VDC
Settings via DIL switches
Level conversion (RS422, HTL single ended, HTL differential, TTL and vice versa)
Division of two-track A / B pulses with adjustable ratio 1: 1 to 1: 4096
Division of the Z pulse with adjustable ratio 1: 1 to 1: 256
External HTL signals for various functions
Implementation between the two types of representations for the direction of rotation (A / B 90 °, A/B Dir and vice versa, Division possible)
Snap-on housing for top hat rail
(acc. EN 60715)
Dimension (B x H X T) 22,5 x 102 x 102 mm

ZU210

Signal Converter Incremental >>> Analog / Serial RS232/RS485

Pulse inputs A, B [HTL], A, /A, B, /B [RS422, HTL]
Input frequency up to 1 MHz [RS422], 200 kHz [HTL]
Analog output ±10 V or 0/4 ... 20 mA, 16 Bit
Power supply 18 ... 30 VDC
Snap-on housing for top hat rail (according to EN 60715)
Setup via operator software OS6.0
Serial RS232- / RS485 interface
SSI input DATA+, DATA-, CLOCK+, CLOCK- [RS422], 32 Bit
Start-stop interface for absolute transducers and magnetostrictive sensors
USB interface and RS232/RS485-interface for configuration and serial readout

ZP210

Signal Converter Incremental >>> Parallel

Pulse inputs A, B [HTL], A, / A, B, / B [RS422, HTL]
SSI input in the format DATA +, DATA-, CLOCK +, CLOCK- up to 32 bits
Start-stop interface for absolute transducers and magnetostrictive sensors
3 control inputs (hold) for PNP signals [10 ... 30 VDC]
Input frequency up to 1 MHz
25-bit parallel output push-pull in BCD, binary or Gray code format
Power supply 18 ... 30 VDC
Compact housing for mounting on 35 mm top-hat rail (according to EN 60715)

Signal Distributor for Incremental Encoder without Potential Separation, 4 Outputs

GV224

Impulse Distributor for Incremental Encoder without Potential Separation, 4 Outputs

1 pulse input with format A, B, Z [HTL] or A, /A, B, /B, Z, /Z [RS422 / HTL differential]
Input frequency up to 350 kHz [SE TTL / SE HTL] or 1 MHz [RS422 / HTL differential]
4 pulse outputs, formats corresponds to those of the input signals, but with individual assignment of the output level for each output
BUS interface for quick and easy expansion of the number of outputs
Power supply 10 ... 30 VDC
Signal delay time 430 ns
Input level at RS422 / TTL (differential voltage > 0.5 V),
Input level at HTL differential (differential voltage > 2 V),
Input level at HTL asymmetric LOW: 0 ... 5 V HIGH: 9 ... 30 V
Input level at TTL (asymmetrical): LOW: 0 ... 0.6 V HIGH: 2.2 ... 5 V
Compact housing for mounting on 35 mm top hat rail (according to EN 60715)
Dimensions W x H x D = 34 x 118 x 140 mm (1,34 x 4,65 x 5,51")

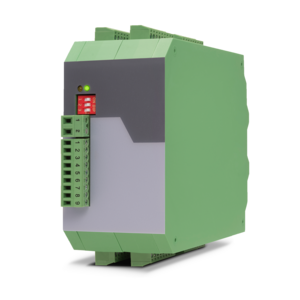

GV228

Impulse Distributor for Incremental Encoder without Potential Separation, 8 Outputs

1 pulse input with format A, B, Z [HTL] or A, /A, B, /B, Z, /Z [RS422]
Input frequency up to 350 kHz [SE TTL / SE HTL] or 1 MHz [RS422 / HTL differential]
8 pulse outputs, formats corresponds to those of the input signals, but with individual assignment of the output level for each output
BUS interface for quick and easy expansion of the number of outputs
Power supply 10 ... 30 VDC
Signal delay time max. 430 ns
Input level at RS422 / TTL (differential voltage > 0.5 V),
Input level at HTL differential (differential voltage > 2 V),
Input level at HTL (asymmetric) LOW: 0 ... 5 V HIGH: 9 ... 30 V
Input level at TTL (asymmetrical): LOW: 0 ... 0.6 V HIGH: 2.2 ... 5 V
Compact housing for mounting on 35 mm top hat rail (according to EN 60715)
Dimensions W x H x D = 54 x 118 x 140 mm (2,13 x 4,65 x 5,51")

GT222

Impulse Distributor for Incremental Encoder with Potential Separation, 2 Outputs

1 pulse input with format A, B, Z [HTL] or A, /A, B, /B, Z, /Z [RS422]
Input frequency up to 350 kHz [SE TTL / SE HTL] or 1 MHz [RS422 / HTL differential]
2 pulse outputs, formats corresponds to those of the input signals, but with individual assignment of the output level for each output
BUS interface for quick and easy expansion of the number of outputs
Power supply 10 ... 30 VDC
Signal delay time max. 430 ns
Input level at RS422 / TTL (differential voltage > 0.5 V),
Input level at HTL differential (differential voltage > 2 V),
Input level at HTL (asymmetric): LOW: 0 ... 5 V HIGH: 9 ... 30 V
Input level at TTL (asymmetrical): LOW: 0 ... 0.6 V HIGH: 2.2 ... 5 V
Compact housing for mounting on 35 mm top hat rail (according to EN 60715)
Dimensions W x H x D = 34 x 118 x 140 mm (1,34 x 4,65 x 5,51")

GT224

Impulse Distributor for Incremental Encoder with Potential Separation, 4 Outputs

1 pulse input with format A, B, Z [HTL] or A, /A, B, /B, Z, /Z [RS422 / HTL differential]
Input frequency up to 350 kHz [SE TTL / SE HTL] or 1 MHz [RS422 / HTL differential]
4 pulse outputs, formats corresponds to those of the input signals, but with individual assignment of the output level for each output
BUS interface for quick and easy expansion of the number of outputs
Power supply 10 ... 30 VDC
Signal delay time max. 430 ns
Input level at RS422 / TTL (differential voltage > 0.5 V),
Input level at HTL differential (differential voltage > 2 V),
Input level at HTL (asymmetric) LOW: 0 ... 5 V HIGH: 9 ... 30 V
Input level at TTL (asymmetrical): LOW: 0 ... 0.6 V HIGH: 2.2 ... 5 V
Compact housing for mounting on 35 mm top hat rail (according to EN 60715)
Dimensions W x H x D = 34 x 118 x 140 mm (1,34 x 4,65 x 5,51")

GT228

Impulse Distributor for Incremental Encoder with Potential Separation, 8 Outputs

1 pulse input with format A, B, Z [HTL] or A, /A, B, /B, Z, /Z [RS422]
Input frequency up to 350 kHz [SE TTL / SE HTL] or 1 MHz [RS422 / HTL differential]
8 pulse outputs, formats corresponds to those of the input signals, but with individual assignment of the output level for each output
BUS interface for quick and easy expansion of the number of outputs
Power supply 10 ... 30 VDC
Signal delay time max. 430 ns
Input level at RS422 / TTL (differential voltage > 0.5 V),
Input level at HTL differential (differential voltage > 2 V),
Input level at HTL asymmetric LOW: 0 ... 5 V HIGH: 9 ... 30 V
Input level at TTL (asymmetrical): LOW: 0 ... 0.6 V HIGH: 2.2 ... 5 V
Compact housing for mounting on 35 mm top hat rail (according to EN 60715)
Dimensions W x H x D = 54 x 118 x 140 mm (2,13 x 4,65 x 5,51")
