Products found: 10
Synchronous Controller

BY340

Synchronous Controller for 1 Follower Axis

Input format: Pulse (HTL, TTL)
Input format: Frequency (HTL, TTL)
Outputs: Analog (V, mA)
Outputs: 4 Transistors
Outputs: RS232
  • 2 pulse inputs with format A, B, 90° [HTL]
    or A, /A, B, /B [RS422]
  • 4 control inputs for HTL / PNP / NPN / Namur signals
    [10 ... 30 VDC]
  • Input frequency up to 300 kHz
  • 4 fast transistor outputs, push-pull, short-circuit-proof
    [5 … 30 VDC]
  • 1 scalable 14 bit analog output
    (±10 V or 0/4 … 20 mA)
  • Loop time approx. 250 µs
  • Power supply 24 VAC and 17 … 40 VDC
  • Compact norm panel housing (according to EN 60715)
  • Top hat rail mounting by using SM300 support brackets (option)
  • Setup via keys or via PC by serial RS232 interface
  • PROFIBUS conncetion via motrona gateway PB251
Master / Slave Synchronizers with 4 Relays

BY641

Master / Slave Synchronizers with 4 Relays

Input format: Pulse (HTL, TTL)
Input format: Frequency (HTL, TTL)
Outputs: Analog (V, mA)
Outputs: 4 Relay
Outputs: 4 Transistors
Outputs: RS232
  • 2 pulse inputs with format A, B, 90° [HTL]
    or A, /A, B, /B [RS422]
  • 4 control inputs for HTL / PNP / NPN / Namur signals
    [10 ... 30 VDC]
  • Input frequency up to 300 kHz
  • 4 fast transistor outputs, push-pull, short-circuit-proof
    [5 … 30 VDC]
  • 4 potential-free changeover relay outputs
  • 1 scalable 14 bit analog output
    (±10 V or 0/4 … 20 mA)
  • Loop time approx. 250 µs
  • Power supply 24 VAC and 17 … 40 VDC
  • Compact norm panel housing (according to EN 60715)
  • Top hat rail mounting by using SM600 support brackets (option)
  • Setup via keys or via PC by serial RS232 interface
  • PROFIBUS conncetion via motrona gateway PB251
Flying Shear Controller FS340

FS340

Controller for Flying Saws and Shears

Input format: Pulse (HTL, TTL)
Input format: Frequency (HTL, TTL)
Outputs: Analog (V, mA)
Outputs: 4 Transistors
Outputs: RS232
  • 2 pulse inputs with format A, B, 90° [HTL]
    or A, /A, B, /B [RS422]
  • 4 control inputs for HTL / PNP / NPN / Namur signals
    [10 ... 30 VDC]
  • Input frequency up to 300 kHz
  • 4 fast transistor outputs, push-pull, short-circuit-proof
    [5 … 30 VDC]
  • 1 scalable 14 bit analog output
    (±10 V or 0/4 … 20 mA)
  • Cutting length specification via keyboard
  • Power supply 24 VAC and 17 … 40 VDC
  • Compact norm panel housing (according to EN 60715)
  • Top hat rail mounting by using SM300 support brackets (option)
  • Setup via keys or via PC by serial RS232 interface
  • PROFIBUS conncetion via motrona gateway PB251
    Controller for Flying Saws FS641

    FS641

    Controller for Machining "On the Fly"

    Input format: Pulse (HTL, TTL)
    Input format: Frequency (HTL, TTL)
    Outputs: Analog (V, mA)
    Outputs: 4 Relay
    Outputs: 4 Transistors
    Outputs: RS232
    • 2 pulse inputs with format A, B, 90° [HTL]
      or A, /A, B, /B [RS422]
    • 4 control inputs for HTL / PNP / NPN / Namur signals
      [10 ... 30 VDC]
    • Input frequency up to 300 kHz
    • 4 fast transistor outputs, push-pull, short-circuit-proof
      [5 … 30 VDC]
    • 4 potential-free changeover relay outputs
    • 1 scalable 14 bit analog output
      (±10 V or 0/4 … 20 mA)
    • Cutting length specification via keyboard or
      front BCD decade switch
    • Power supply 24 VAC and 17 … 40 VDC
    • Compact norm panel housing (according to EN 60715)
    • Top hat rail mounting by using SM600 support brackets (option)
    • Setup via keys or via PC by serial RS232 interface
    • PROFIBUS conncetion via motrona gateway PB251
      Controller for Rotating Cross Cutters CT340

      CT340

      Controller for Rotary Cutters

      Input format: Pulse (HTL, TTL)
      Input format: Frequency (HTL, TTL)
      Outputs: Analog (V, mA)
      Outputs: 4 Transistors
      Outputs: RS232
      • 2 pulse inputs with format A, B, 90° [HTL]
        or A, /A, B, /B [RS422]
      • 4 control inputs for HTL / PNP / NPN / Namur signals
        [10 ... 30 VDC]
      • Input frequency up to 300 kHz
      • 4 fast transistor outputs, push-pull, short-circuit-proof
        [5 … 30 VDC]
      • 1 scalable 14 bit analog output
        (±10 V or 0/4 … 20 mA)
      • Loop time approx. 250 µs
      • Cutting length specification via keyboard
      • Power supply 24 VAC and 17 … 40 VDC
      • Compact norm panel housing (according to EN 60715)
      • Top hat rail mounting by using SM300 support brackets (option)
      • Setup via keys or via PC by serial RS232 interface
      • PROFIBUS conncetion via motrona gateway PB251
      Controller for Rotating Cross Cutters CT641

      CT641

      Controller with 4 Relays and front-mounted Thumbwheel Switches

      Input format: Pulse (HTL, TTL)
      Input format: Frequency (HTL, TTL)
      Outputs: Analog (V, mA)
      Outputs: 4 Relay
      Outputs: 4 Transistors
      Outputs: RS232
      • 2 pulse inputs with format A, B, 90° [HTL]
        or A, /A, B, /B [RS422]
      • 4 control inputs for HTL / PNP / NPN / Namur signals
        [10 ... 30 VDC]
      • Input frequency up to 300 kHz
      • 4 fast transistor outputs, push-pull, short-circuit-proof
        [5 … 30 VDC]
      • 4 potential-free changeover relay outputs
      • 1 scalable 14 bit analog output
        (±10 V or 0/4 … 20 mA)
      • Loop time approx. 250 µs
      • Cutting length specification via BCD decade switch on the front
      • Power supply 24 VAC and 17 … 40 VDC
      • Compact norm panel housing (according to EN 60715)
      • Top hat rail mounting by using SM600 support brackets (option)
      • Setup via keys or via PC by serial RS232 interface
      • PROFIBUS conncetion via motrona gateway PB251
      Controller for Intermittent Printing Applications

      MC700

      Intermittent Printing, Label Printing, Rotary Punching

      Input format: Analog (V, mA)
      Input format: Pulse (HTL, TTL)
      Input format: Frequency (HTL, TTL)
      Outputs: Analog (V, mA)
      Outputs: 8 Transistoren
      Outputs: RS232
      Outputs: RS485
      • 4 pulse inputs with format  A, /A, B, /B [RS422]
      • 4 scalable 12 bit analog inputs for ±10 V or 0/4 ... 20 mA
      • 8 control inputs for PNP signals [10 ... 30 VDC]
      • 4 scalable 12 bit analog outputs for ±10 V or 0/4 ... 20 mA
      • Short loop time (depending on application)
      • Power supply 18 ... 35 VDC
      • Snap-on housing for top hat rail
        (according to EN 60715)
      • Setup via windows operator software (free of charge)
      • OnBoard interfaces: RS232 and CANopen

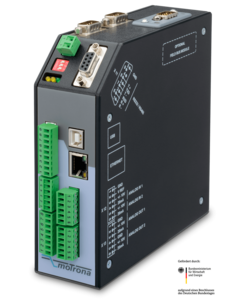

      Motion Controller with integrated Tandem Drive Controller

      MC800

      Universal Motion Controller

      Input format: Analog (V, mA)
      Input format: Pulse (HTL, TTL)
      Input format: Frequency (HTL, TTL)
      Input format: SSI (DATA, CLOCK)
      Input format: SinCos (1 Vss)
      Outputs: Analog (V, mA)
      Outputs: 4 Transistors
      Outputs: RS232
      • The MC800 hardware is a universal motion controller, which serves for sophisticated control tasks in today’s machine engineering and drive technology. This motion controller can cover a wide application range due to the function features and settings of the equipped control firmware.
      • Typical control applications are e. g. drive synchronization of a master and slave axis, index and print mark evaluation, rotating cross cutters, flying and eccentric shears, label printing machines and many more.
      • The unique feature of the MC800 is the integrated tandem drive controller. This enables to reach the acceleration requirements of heavy loads by splitting the necessary power to two independent drives.
      • Further features are the flexible and combinable input configuration for different types of encoders, measuring systems and sensors, the high frequency range up to 2 MHz and the adaptive interface architecture.
      • Due to an extremely short position loop time of 250 µs, a self-optimizing polynomial motion profile, an excellent accuracy - even at high line speeds, the MC800 ensures a very smooth motion with maximum protection of the mechanical parts.
      Stand-Alone Single Axis Controller PS340

      PS340

      Single Axis Position Controller

      Input format: Pulse (HTL, TTL)
      Outputs: Analog (V, mA)
      Outputs: 4 Transistors
      Outputs: RS232
      • 2 pulse inputs with format A, B, 90° [HTL]
        or A, /A, B, /B [RS422]
      • 4 control inputs for HTL / PNP / NPN / Namur signals
        [10 ... 30 VDC]
      • Input frequency up to 300 kHz
      • 4 fast transistor outputs, push-pull, short-circuit-proof
        [5 … 30 VDC]
      • 1 scalable 14 bit analog output
        (±10 V or 0/4 … 20 mA)
      • Loop time approx. 250 µs
      • Defining incremental dimensions via keyboard
      • Power supply 24 VAC and 17 … 40 VDC
      • Compact norm panel housing
        (according to EN 60715)
      • Top hat rail mounting by using SM300 support brackets (option)
      • Setup via keys or via PC by serial RS232 interface
      • PROFIBUS conncetion via motrona gateway PB251
      Position Controller PS641

      PS641

      Single Axis Position Controller with 4 Relay Outputs

      Input format: Pulse (HTL, TTL)
      Outputs: Analog (V, mA)
      Outputs: 4 Relay
      Outputs: 4 Transistors
      Outputs: RS232
      • 2 pulse inputs with format A, B, 90° [HTL]
        or A, /A, B, /B [RS422]
      • 4 control inputs for HTL / PNP / NPN / Namur signals
        [10 ... 30 VDC]
      • Input frequency up to 300 kHz
      • 4 fast transistor outputs, push-pull, short-circuit-proof
        [5 … 30 VDC]
      • 1 scalable 14 bit analog output
        (±10 V or 0/4 … 20 mA)
      • Loop time approx. 250 µs
      • Defining incremental dimensions via keyboard or BCD decade switch on the front
      • Power supply 24 VAC and 17 … 40 VDC
      • Compact norm panel housing
        (according to EN 60715)
      • Top hat rail mounting by using SM600 support brackets (option)
      • Setup via keys or via PC by serial RS232 interface
      • PROFIBUS conncetion via motrona gateway PB251
      • Dimension 96 x 96 x 140 mm (3,78 x 3,78 x 5,51")
