ES001: Incremental Encoder Simulator
The ES001 has been discontinued as of 31.07.2020. Its successor is the UZ210. More details about the UZ210 ...

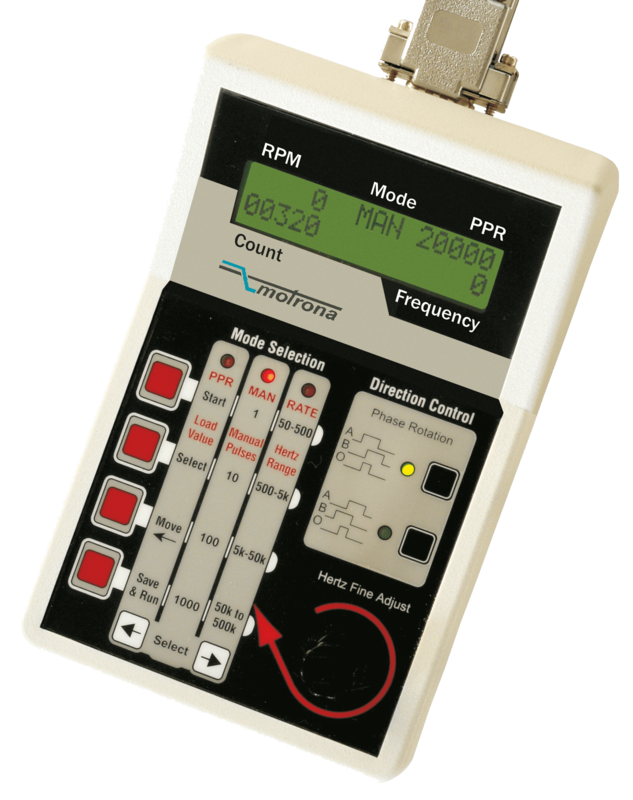

This encoder simulator is suitable for testing encoder wiring within complex systems, for "dry tests" when the machine is at a standstill, as well as for functional testing and error analysis of counters, measuring instruments and converters with incremental signal inputs. ES001 can simulate very slow movements down to the "single step" as well as very fast rotations with a transducer frequency of up to 500 kHz.
The device generates both TTL and HTL encoder signals of any direction, including an adjustable zero pulse. The simulator is clearly structured and easy to use.
- Testing unit for generation of all typical encoder output signals
- Outputs A, /A, B, /B, Z, /Z with TTL- and HTL level
- Output frequency adjustable from 0 to 500 kHz
- Marker pulse output with programmable distance
- Selectable direction of rotation (phase A/B)
- Also generates counted pulse sequences of any number of pulses
