GV204: Pulse Splitter for Incremental Encoder Signals

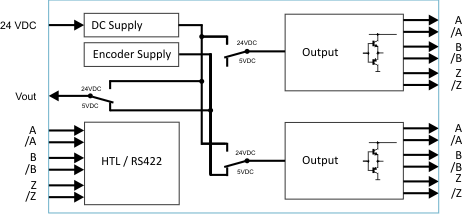

The device is used to distribute the output signals of incremental pulse generators accuratly and easily to two terminals. If more than two terminals are used, multiple splitters can also be cascaded, or a larger splitter, such as the GV470, can be used.

At the same time, the device can be used as a level converter between TTL / RS422 and HTL (10 ... 30 V).


  • 1 encoder input programmable with format
    A, /A, B, /B, Z, /Z [TTL / RS422]
    or optionally A, B, Z [HTL]
  • Input frequency 750 kHz [TTL] or 300 kHz [HTL]
  • 2 pulse outputs with format A, /A, B, /B, Z, /Z
    with individual adjustable output levels 5 V [TTL]
    or 10 ... 30 V [HTL]
  • Power supply optionally 5 VDC or 10 ... 30 VDC
  • Auxiliary voltage +5 V for encoder supply 10 ... 30 VDC
