IX346: SSI Indicator with Analog Output
The IX346 has been discontinued as of 31.12.2018. The touchMATRIX® series offers a complete replacement with a variety of options. More details of IX350/AO ...

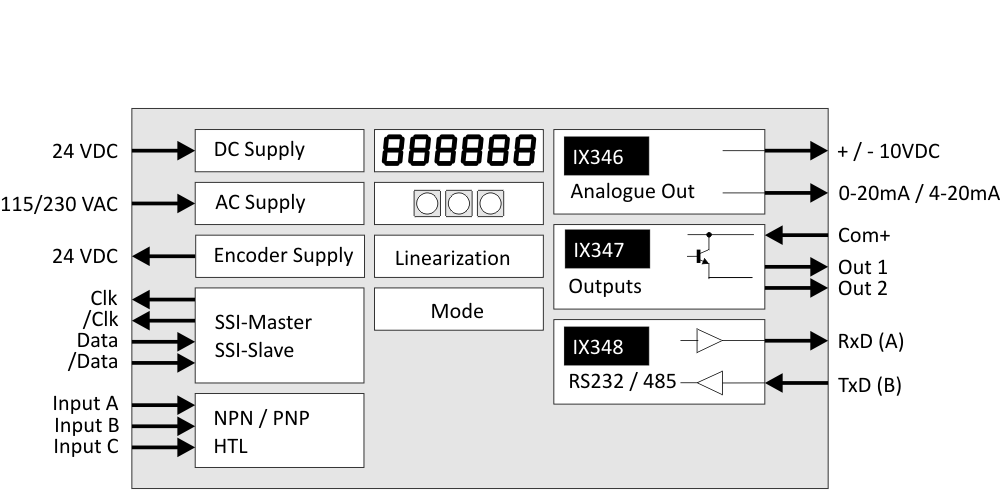

The multifunctional and extensively programmable SSI digital display IX346 processes the signals from absolute encoders and absolute measuring systems, which have an SSI interface. Codes and formats from 8 to 32 bits can be processed
This variant is additionally equipped with a 14-bit analog output which is designed for operation with voltage or current.
Availability on request.
- SSI input with format DATA+, DATA-, CLOCK+, CLOCK-
- 3 control inputs for PNP / NPN / signals [10 ... 30 VDC]
- SSI frequency range 100 Hz ... 1 MHz
- Scalable 14 bit analog output ±10 V or 0/4 ... 20 mA
- Power supply 115 / 230 VAC and 24 VDC
- Compact norm panel housing
with dimension 96 x 48 x 140 mm (3.78 x 1.89 x 5.51 ") - 6 digit LED display with 15 mm height
- Display range -199999 ... 999999
- Selectable linearization function with 16 interpolation points
- Easy scaling and setup by means of front keys and menu support
- Programmable bit blanking, round-loop mode and more
Declaration of Conformity
File type: pdf, File size: 73 KB
File type: pdf, File size: 1 MB
Data Sheet series IX345-348
File type: pdf, File size: 154 KB
