IX342: SSI Indicator with 2 Relays and RS232 / RS485 Interface
The IX342 has been discontinued as of 31.12.2018. The touchMATRIX® series offers a complete replacement with a variety of options. More details of IX350/RL ...

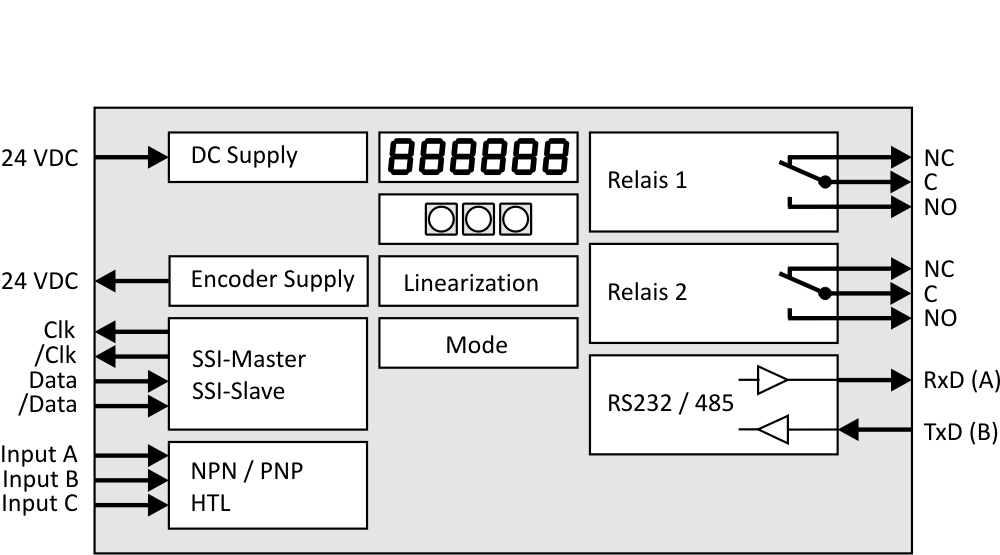

The universal SSI display device is suitable for visualizing the measured values of all current SSI absolute encoders and measuring systems with SSI formats and codes from 8 ... 32 bits. The device can be operated as master or slave and has numerous programmable additional functions.
The IX342 variant offers as a special feature 2 relay outputs (potential-free change-over contact) instead of the conventional 2 transistor outputs of the variants IX345 - 348.
- SSI input with format DATA+, DATA-, CLOCK+, CLOCK-
- 3 control inputs for PNP / NPN / signals [10 ... 30 VDC]
- SSI frequency range 100 Hz ... 1 MHz
- 2 output relays with potential free change-over contact
- Power supply 24 VDC
- Serial RS232 / RS485 interface (switchable)
- Compact norm panel housing
with dimension 96 x 48 x 140 mm (3.78 x 1.89 x 5.51 ") - 6 digit LED display with 15 mm height
- Display range -199999 ... 999999
- Selectable linearization function with 16 interpolation points
- Easy scaling and setup by means of front keys and menu support
- Programmable bit blanking, round-loop mode and more
Declaration of Conformity
File type: pdf, File size: 73 KB
File type: pdf, File size: 1 MB
Data Sheet IX342
File type: pdf, File size: 153 KB
