AX348: Process Indicator with Serial RS232 / RS485 interface
The AX342 has been discontinued as of 31.12.2018. The touchMATRIX® series offers a complete replacement with a variety of options. More details of AX350/CO ...

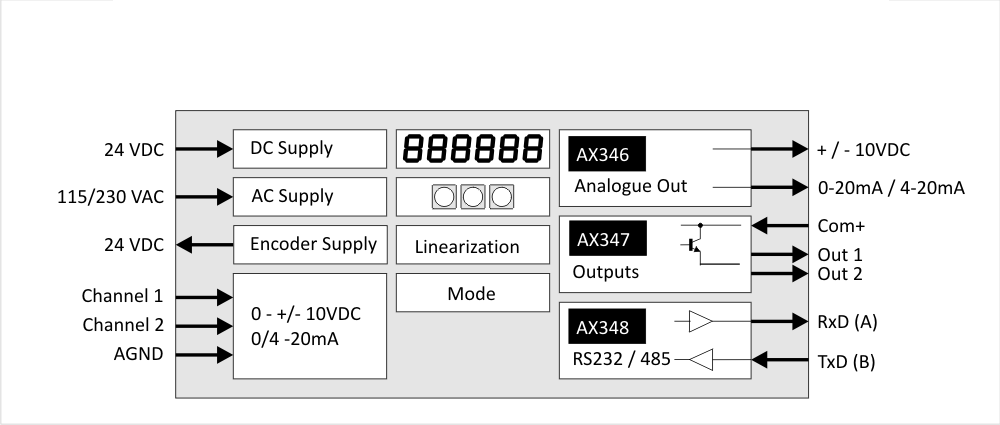

Like all other AX342 - 348 devices, the AX348 has two analog inputs for detecting analog standard signals (V or mA). However, it also has a serial interface, which can be switched between RS232 and RS485. This interface can optionally be used to transmit measured values serially in the printer mode or to read out arbitrary parameters or transmit them to the AX (parameter setting) via the OS user interface in PC mode.
Availability on request.
- 2 separat scalable analog inputs, each 0 ... 10 V or 0/4 ... 20 mA
- Serial RS232 / RS485 interface
- Power supply 115 / 230 VAC and 24 VDC
- Suitable for displaying Input 1 or Input 2 as well as
sum (IN1 + IN2), difference (IN1 - IN2) and relation (IN1 : IN2) - Tara function
- Selectable linearization function
- Compact norm panel housing
- 6 digits LED display with 15 mm height
- 20.000 steps of resolution
- Display range -99999 ... 999999
- Front dimension 96 x 48 x 140 mm (3.78 x 1.89 x 5.51")
Declaration of Conformity
File type: pdf, File size: 69 KB
File type: pdf, File size: 715 KB
Data Sheet series AX345-348
