AX342: Process Indicator with Relay Outputs and Serial Interface
The AX342 has been discontinued as of 31.12.2018. The touchMATRIX® series offers a complete replacement with a variety of options. More details of AX350/RL ...
An analog process display often meets the requirements for high flexibility and ease of use. For many applications, two independent inputs are required, which can be processed and displayed individually or in combination. Likewise, non-linear analog signals must also be evaluated and represented with sufficient accuracy, which requires a programmable linearization function. The process displays of the series AX342 - 348 fulfill all of these requirements in a largely identical manner.

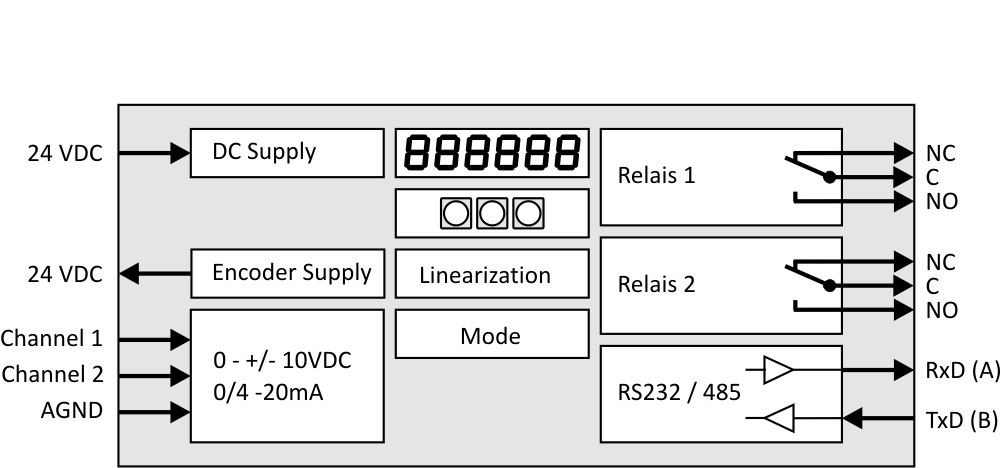

The AX342 also has 2 limit values and potential-free relay switching outputs as well as a serial interface (switchable RS232 / RS485).
- Digital multifunction display with 2 separat scalable analog inputs, each ±10 V or 0/4 ... 20 mA
- 2 relay outputs
- RS232 / RS485-interface
- Power supply 24 VDC
- Suitable for displaying Input 1 or Input 2 as well as
sum (IN1 + IN2), difference (IN1 - IN2) and relation (IN1 : IN2) - Tara function
- Selectable linearization function
- Compact norm panel housing
- 6 digits LED display with 15 mm height
- 20.000 steps of resolution
- Display range -99999 ... 999999
- Front dimension 96 x 48 x 140 mm (3.78 x 1.89 x 5.51")
Declaration of Conformity
File type: pdf, File size: 69 KB
File type: pdf, File size: 758 KB
Data Sheet AX342
File type: pdf, File size: 149 KB
