PB541: PROFIBUS Indicator & Preset Unit as Combination

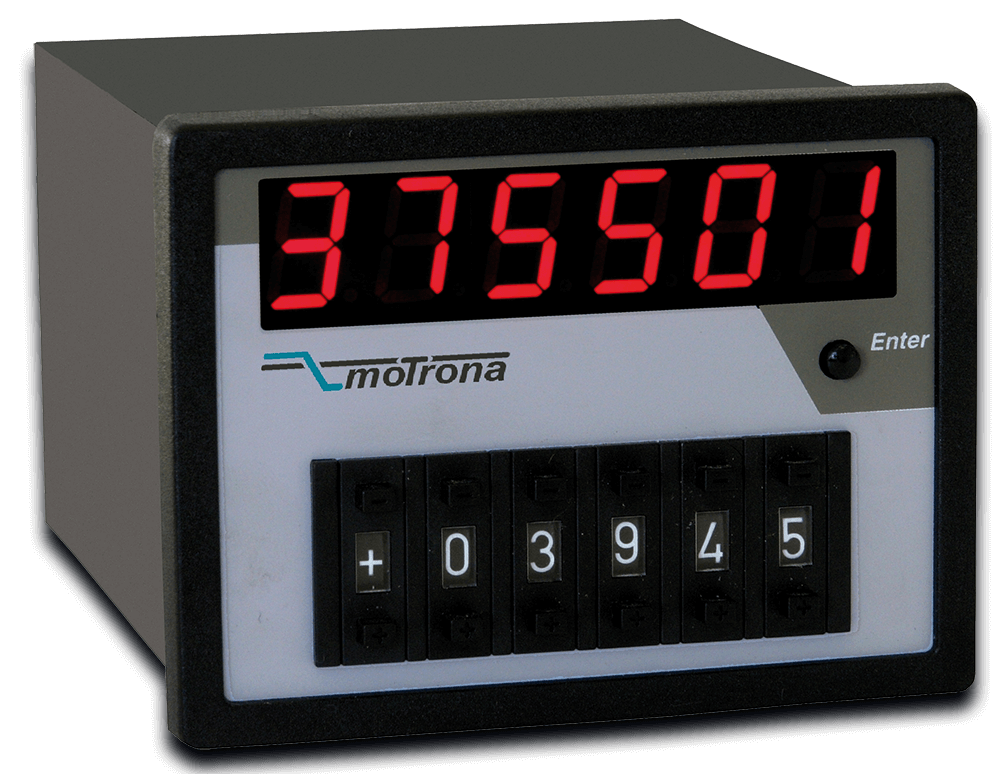

The PB541 is a combination of the display and input devices with a front-panel 6-decade BCD switch. The device is also used to transmit input values and parameters to the fieldbus as well as a 6-digit display device for displaying numerical information from the PROFIBUS network. While arbitrary setpoints can be switched to the PROFIBUS via the front-side BCD switches, the current actual value of the same or a different code point can be displayed on the LED display.
The combination is delivered in an installation housing with front dimensions of 96 x 72 x 140 mm (3.78 x 2.83 x 5.51 ").
Availability on request.
- Power supply 10 ... 30 VDC
- Compact norm panel housing
- Preset range: 6 digits or 5 digits with sign
- DIL-switch for setup of the transmission parameters
- Dimension H x B x T = 96 x 72 x 140 mm (3.78 x 2.83 x 5.51 ")
Declaration of Conformity
File type: pdf, File size: 165 KB
File type: pdf, File size: 318 KB
File type: pdf, File size: 318 KB
File type: pdf, File size: 318 KB
Data Sheet series PB306-541
File type: pdf, File size: 109 KB
PROFIBUS
PROFIBUS© GSD File for motrona units PB306 / PB340 / PB541.
Mksr0553.zip (1 KB)
