PB306: Simple Preset Unit for PROFIBUS

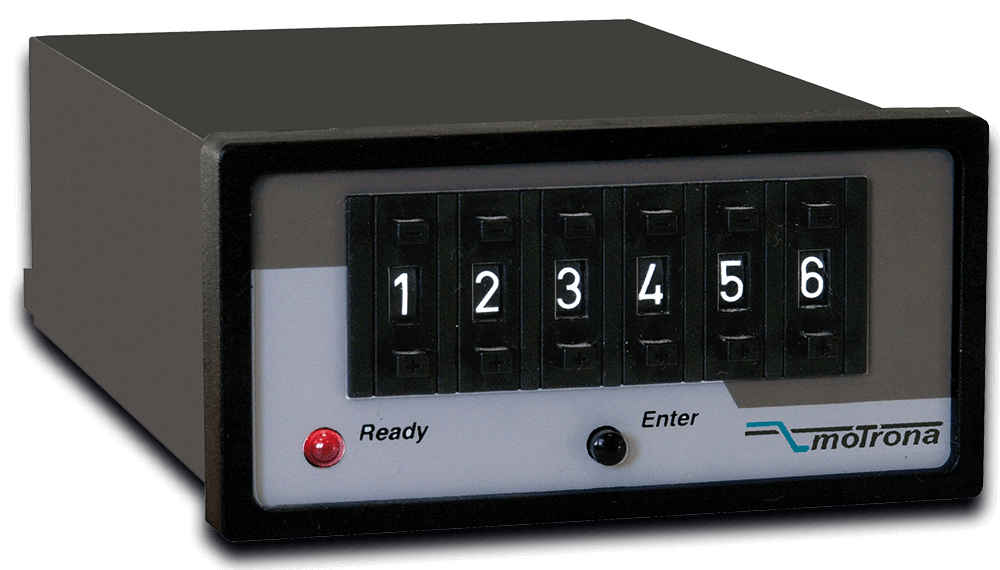

The PB306 is a simple device with front-end 6-decade BCD pre-selection switch which is used for remote adjustment of individual parameters (eg setpoint speed of a drive) via a PROFIBUS interface. By pressing the front ENTER key, the BCD value is provided via the PROFIBUS for read-out. All PROFIBUS-DP baud rates from 9.6 kbit / s to 12 Mbps are supported. Optionally, a variant with 5 decades and sign (+/-) is also available. The compact installation housing is suitable for mounting in a panel panel of 96 x 48 x 140 mm / 3.78 x 1.89 x 5.51 ".

Availability on request.

Power supply 10 ... 30 VDC
Compact norm panel housing
Preset range: 6 digits or 5 digits with sign
DIL-switch for setup of the transmission parameters
By pressing the ENTER button, the actual BCD setting will be transmitted to the selected register of the target unit as PDO or SDO (CANBUS) or hold in the polling register for readout (PROFIBUS)
Dimension H x B x T = 96 x 48 x 140 mm (3.78 x 1.89 x 5.51 ")
