EC350: touchMATRIX® EtherCAT Indicator

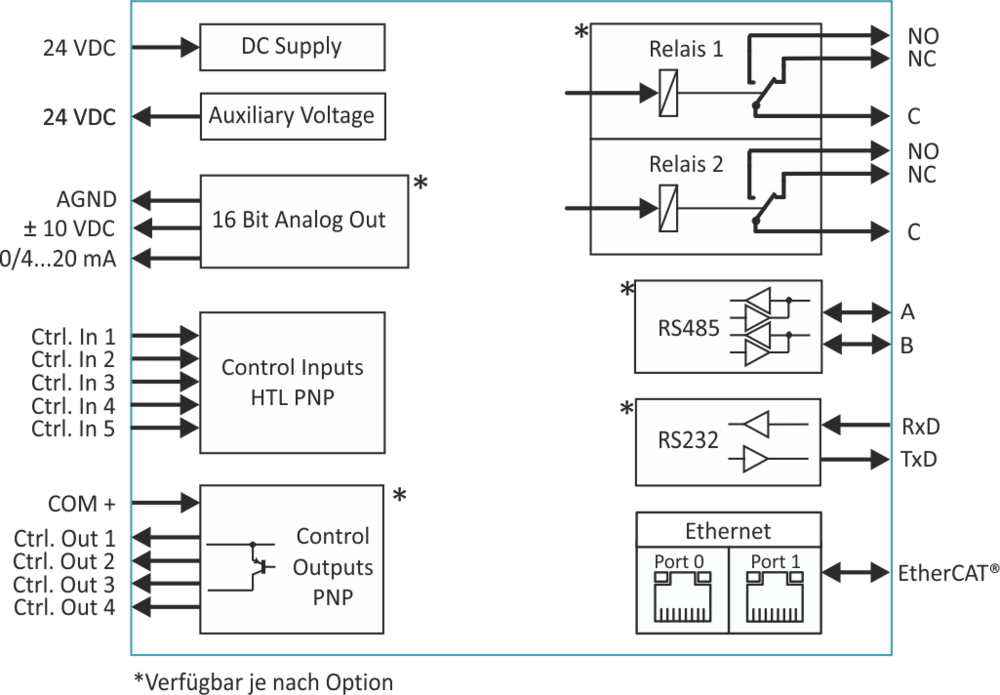

The EtherCAT indicator EC350 can record, calculate, evaluate, display and pass on process data. The interfaces also enable the configuration and scaling of the device during the transmission of status information during operation. It is ideally suited as an on-site indicator with a resistive touchscreen, multi-color graphic display (red, green, yellow) and bargraph.
- EtherCAT interface
- 5 control inputs for remote release
- Power supply 18 ... 30 VDC
- Norm panel housing with 96 x 48 mm and protection class IP65
- Bright and high-contrast graphic display with event-dependent color variants
- Emulation of a 7-segment display with symbols, units and bargraph
- Intuitive and simple parameterization through plain text and touchscreen
Declaration of Conformity
File type: pdf, File size: 627 KB
File type: pdf, File size: 2 MB
Data Sheet EC350
File type: pdf, File size: 386 KB
SM300: Mounting Clamps and Brackets
suitable for display units with front dimension 96 x 48 mm.
Show details »
TG300: Table Housing
suitable for display units with front dimension 96 x 48 mm (fits not to Profibus indicator PB340).
Show details »
