ZD632: Preselect Counter 8 digits with 2 front-mounted Thumbwheel Switches
The ZD632 will be discontinued on 30.09.2023.
In certain applications, the touchMATRIX® devices DX350 or IX350 can be used as a substitute.
The fast preselection counter masters demanding counting tasks with input frequencies up to 1 MHz. In addition to the numerous operating modes (e.g. differential, directional and sum counting or display of cutting lengths), the variant ZD632 additionally has two limit values, which can be set at the front and are used for relay control. The device has an 8-digit, 10 mm high LED display.

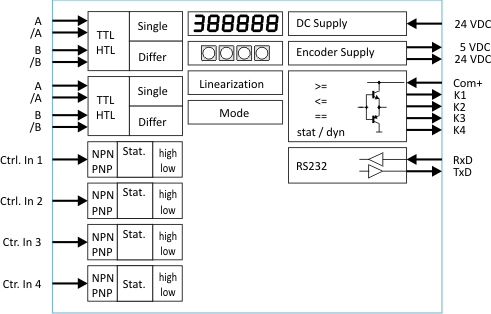

- 2 scalable inputs with format A, /A, B, /B
[HTL / TTL / RS422, single channel, dual channel,
symmetric or asymmetric] - 4 control inputs for PNP / NPN / Namur signals
[10 ... 30 VDC] - Input frequency up to 1 MHz
- 4 fast transistor outputs with push-pull characteristic,
short-circuit-proof [5 ... 30 VDC - 4 outputs relays
- 4 programmable preset values
- Power supply 24 VAC and 17 ... 40 VDC
- Compact norm panel housing
- LED display 8 digits with 10 mm height
- Display range -19999999 ... 99999999
- 2 front-panel preselections for the switching function
- Serial RS232 interface
- Dimension B x H x T = 96 x 48 x 140 mm (3.78 x 3.78 x 5.51")
