DX346: Counter with Analog Output
The DX346 has been discontinued as of 31.12.2018. The touchMATRIX® series offers a complete replacement with a variety of options. More details of DX350/AO ...

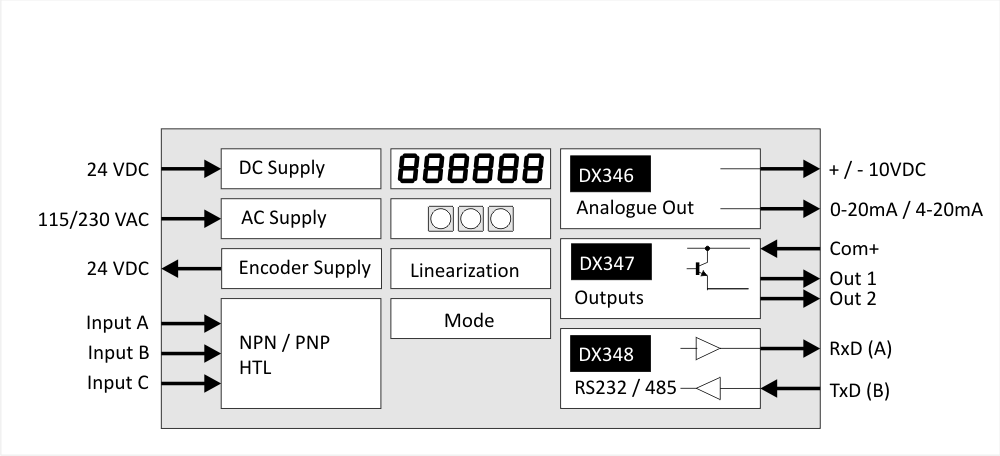

Like the other counters of the series DX342 - 348, the DX346 is an extensively programmable multifunction counter for dual channel incremental encoders with the tracks A and B. It can be used on a wide range of machines and systems and can be easily installed in the control panel with its standard mounting housing. The device, which has a static set / reset input, reliably and precisely performs count values such as pulse numbers, sums, differences, positions, events, etc.
The DX346 also has a scalable 14-bit analog output for voltage or current operation (0 to 10 V or 0/4 to 20 mA).
Availability on request.
- Pulse input with format A, B, 90° [HTL], [TTL] as an option
- Static input for Set / Reset [HTL]
- Scalable 14 bit analog output ±10 V or 0/4 ... 20 mA
- Input frequency up to 100 kHz
- Power supply 115 / 230 VAC and 24 VDC
- Compact norm panel housing
dimensioning 96 x 48 x 140 mm (3.78 x 1.89 x 5.51") - 6 digits LED display with 15 mm height
- Display range -199999 ... 999999
- Selectable linearization function with 16 interpolation points
- Easy scaling and setup by means of 3 front keys and menu support
Declaration of Conformity
File type: pdf, File size: 186 KB
File type: pdf, File size: 1 MB
Data Sheet DX345-348
File type: pdf, File size: 156 KB
