DX342: Counter with 2 Relay Outputs and Serial Interface
The DX342 has been discontinued as of 31.12.2018. The touchMATRIX® series offers a complete replacement with a variety of options. More details of DX350/RL ...
The DX342 - 348 series electronic are true all-rounder. They have the operating modes as counter, position indicator, tachometer, flow-through display, run-time measurement and stopwatch. In addition, the devices offer numerous additional functions such as linearization, brightness control and digital filters.

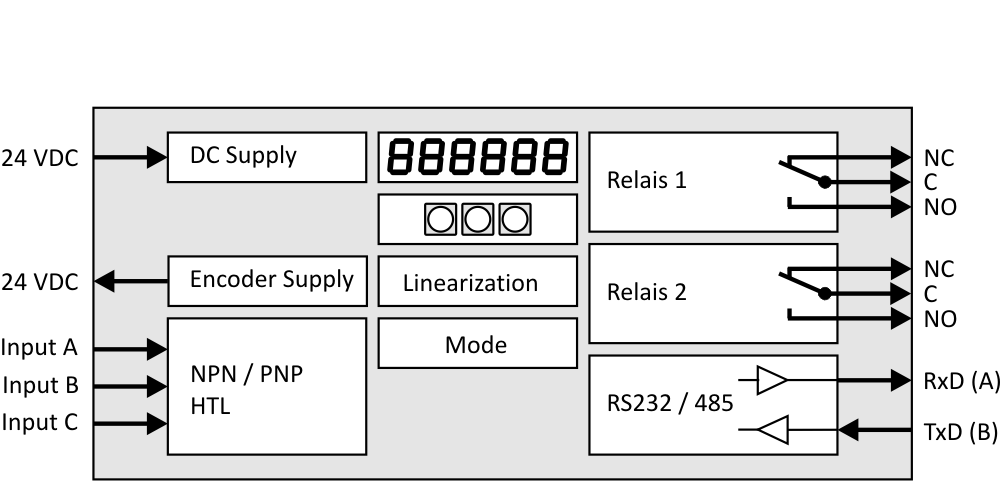

The DX342 is equipped with two relay outputs and a serial RS232 / RS485 interface.
- Pulse input with format A, B, 90° [HTL], [TTL] as an option
- Static input for Set / Reset [HTL]
- 2 relay outputs
- Input frequency up to 100 kHz
- Power supply 24 VDC
- Serial RS232 / RS485 interface (switchable)
- Compact norm panel housing
dimensioning 96 x 48 x 140 mm (3.78 x 1.89 x 5.51") - 6 digits LED display with 15 mm height
- Display range -199999 ... 999999
- Selectable linearization function with 16 interpolation points
- Easy scaling and setup by means of 3 front keys and menu support
Declaration of Conformity
File type: pdf, File size: 186 KB
File type: pdf, File size: 1 MB
Data Sheet DX342
File type: pdf, File size: 151 KB
