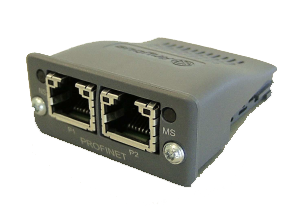

PN800: Profinet Interface Modul
The PN800 interface module provides instant Profinet IO connectivity of the MC800 universal motion controller. The unit is a Profinet IO Device with Conformance Class B that supports RT and non-cyclic communication. It provides two Ethernet ports with integrated switch for 100 Mbit/s full duplex communication. The interface module allows cyclic data exchange of 4 MC800 input registers and 4 MC800 output registers. It also allows access to all MC800 registers by additional acyclic data exchange. The module can easily be fitted to the MC800 by plug-in mounting to a prepared slot.
- Internal power supply 3,3 V
- Ambient temperature 0° C ... +60° C (opertating), -40° C ... +70° C (storage)
- 100 MBit/s Vollduplex
- 2 Ethernet-Ports RJ45 with integrated switch, galvanically isolated
PROFINET (MC800)
PROFINET GSD File for motrona MC800.
GSDML.zip (28 KB)
