PB800: Profibus DPV1 Interface Module

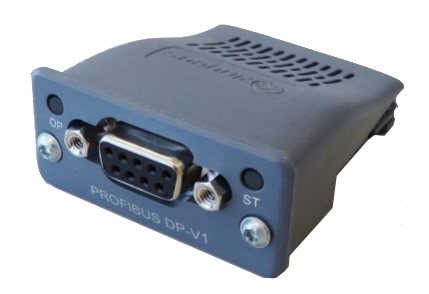

The PB800 interface module provides instant Profibus DP connectivity of the MC800 universal motion controller. It is a standard Profibus-DPV1 Slave according to IEC 61158.
The Profibus interface is a galvanically isolated standard RS485 Profibus interface and supports all standard baud rates (9600 bit/s ... 12 Mbit/s) with automatic baud rate detection.
The interface module allows cyclic data exchange of 4 MC800 input registers and 4 MC800 output registers. It also allows acyclic access to all MC800 registers by additional DPV1 functions.
The module can easily be fitted to the MC800 by plug-in mounting to a prepared slot.
- Internal power supply 3,3 V
- Ambient temperature 0° C ... +60° C / 32° F ... 140° F (operating), -40° C ... +70° C / -40 ... 158° F (storage)
- 9600 Bit/s ... 12 MBit/s Baud rates
- SUB-D-9-pin female, galvanically isolated
File type: pdf, File size: 1 MB
File type: pdf, File size: 444 KB
PROFIBUS (MC800)
PROFIBUS© GSD File for motrona MC800 units.
HMSB1811.zip (2 KB)
