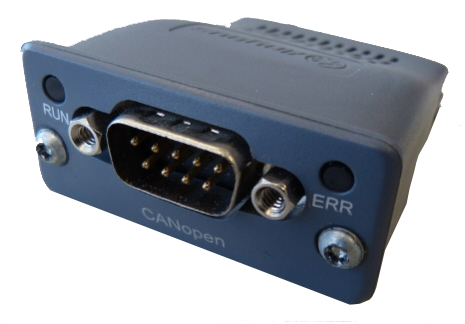

CI800: CANopen Interface Module
Interface for motrona MC800 motion controller
The CI800 interface module provides instant CANopen connectivity of the MC800 universal motion controller.
It is a standard CANopen Slave compliant to CiA DS301 V 4.02. The CAN bus connection is galvanically isolated and supports all standard baud rates as well as auto baudrate detection.
The interface module permits easy parameter access via SDO communication and process data transfer with 4 Receive-PDOs and 4 Transmit-PDOs.
- Internal power supply 3,3 V
- Ambient temperature 0° C ... +60° C / 32° F ... 140° F (operating), -40° C ... +70° C / -40° F ... 158° F (storage)
- 10, 20, 50, 100, 125, 250, 500, 800 und 1000 kbps Baud rates
- SUB-D-9-pin male, galvanically isolated
File type: pdf, File size: 1 MB
File type: pdf, File size: 444 KB
CAN-Bus
EDS Files for CANopen© units MC700 / CA307 / CA340 / CA541.
