Pulse Distributor

Products found: 16

The innovative motrona pulse splitters and signal distributors distribute the output signals of incremental encoders and measuring systems easy and clean to several terminals and simultaneously amplify the signals. They can also be used for level conversion. Depending on the requirements, different variants are available without, with simple or with complete potential separation.

Dual Level Converter for HTL and RS422 / TTL

GV210

Dual Level Converter for HTL and RS422 / TTL

Input format: Frequency (HTL, TTL)
Input format: Pulse (HTL, TTL)
Outputs: Frequency (HTL, TTL)
Outputs: Pulse (HTL, TTL)
  • 2 pulse inputs with format  A, B, Z [HTL] or A, /A, B, /B, Z, /Z [RS422]
  • Input frequency up to 250 kHz for asymmetrical and up to 1 MHz for symmetric signals
  • 2 control inputs for HTL / PNP signals [10 ... 30 VDC]
  • 2 output channels with format  A, B, Z [HTL] or
    A, /A, B, /B, Z, /Z [RS422], each output adjustable separately
  • Power supply 12 ... 30 VDC
  • Snap-on housing for top hat rail
    (according to EN 60715)
Signal Distributor for Incremental Encoder without Potential Separation, 4 Outputs

GV224

Impulse Distributor for Incremental Encoder without Potential Separation, 4 Outputs

Input format: Frequency (HTL, TTL)
Input format: Pulse (HTL, TTL)
Outputs: Frequency (HTL, TTL)
Outputs: Pulse (HTL, TTL)
  • 1 pulse input with format A, B, Z [HTL] or A, /A, B, /B, Z, /Z [RS422]
  • Input frequency up to 500 kHz with HTL or 1 MHz with RS422 / TTL
  • 4 pulse outputs, formats corresponds to those of the input signals, but with individual assignment of the output level for each output
  • BUS interface for quick and easy expansion of the number of outputs
  • Power supply 10 ... 30 VDC
  • Signal delay time 160 ns
  • Input level at RS422 / TTL (differential voltage > 0.5 V),
  • Input level at HTL differential (differential voltage > 2 V),
  • Input level at HTL asymmetric low: 0 ... 6 V, high: 8 ... 40 V
  • Input level at TTL (asymmetrical): LOW < 0.8 V, HIGH >2.0 V
  • Compact housing for mounting on 35 mm top hat rail (according to EN 60715)
  • Dimensions W x H x D = 34 x 118 x 140 mm (1,34 x 4,65 x 5,51")
Impulse Distributor for Incremental Encoder without Potential Separation, 8 Outputs

GV228

Impulse Distributor for Incremental Encoder without Potential Separation, 8 Outputs

Input format: Pulse (HTL, TTL)
Input format: Frequency (HTL, TTL)
Outputs: Pulse (HTL, TTL)
Outputs: Frequency (HTL, TTL)
  • 1 pulse input with format A, B, Z [HTL] or A, /A, B, /B, Z, /Z [RS422]
  • Input frequency up to 500 kHz with HTL or 1 MHz with RS422 / TTL
  • 8 pulse outputs, formats corresponds to those of the input signals, but with individual assignment of the output level for each output
  • BUS interface for quick and easy expansion of the number of outputs
  • Power supply 10 ... 30 VDC
  • Signal delay time 160 ns
  • Input level at RS422 / TTL (differential voltage > 0.5 V),
  • Input level at HTL differential (differential voltage > 2 V),
  • Input level at HTL asymmetric low: 0 ... 6 V, high: 8 ... 40 V
  • Input level at TTL (asymmetrical): LOW < 0.8 V, HIGH >2.0 V
  • Compact housing for mounting on 35 mm top hat rail (according to EN 60715)
  • Dimensions W x H x D = 54 x 118 x 140 mm (2,13 x 4,65 x 5,51")
Impulse Distributor for Incremental Encoder with Potential Separation, 2 Outputs

GT222

Impulse Distributor for Incremental Encoder with Potential Separation, 2 Outputs

Input format: Pulse (HTL, TTL)
Input format: Frequency (HTL, TTL)
Outputs: Pulse (HTL, TTL)
Outputs: Frequency (HTL, TTL)
  • 1 pulse input with format A, B, Z [HTL] or A, /A, B, /B, Z, /Z [RS422]
  • Input frequency up to 500 kHz with HTL or 1 MHz with RS422 / TTL
  • 2 pulse outputs, formats corresponds to those of the input signals, but with individual assignment of the output level for each output
  • BUS interface for quick and easy expansion of the number of outputs
  • Power supply 10 ... 30 VDC
  • Signal delay time 160 ns
  • Input level at RS422 / TTL (differential voltage > 0.5 V),
  • Input level at HTL differential (differential voltage > 2 V),
  • Input level at HTL asymmetric low: 0 ... 6 V, high: 8 ... 40 V
  • Input level at TTL (asymmetrical): LOW < 0.8 V, HIGH >2.0 V
  • Compact housing for mounting on 35 mm top hat rail (according to EN 60715)
  • Dimensions W x H x D = 34 x 118 x 140 mm (1,34 x 4,65 x 5,51")
Impulse Distributor for Incremental Encoder with Potential Separation, 4 Outputs

GT224

Impulse Distributor for Incremental Encoder with Potential Separation, 4 Outputs

Input format: Frequency (HTL, TTL)
Input format: Pulse (HTL, TTL)
Outputs: Frequency (HTL, TTL)
Outputs: Pulse (HTL, TTL)
  • 1 pulse input with format A, B, Z [HTL] or A, /A, B, /B, Z, /Z [RS422]
  • Input frequency up to 500 kHz with HTL or 1 MHz with RS422 / TTL
  • 4 pulse outputs, formats corresponds to those of the input signals, but with individual assignment of the output level for each output
  • BUS interface for quick and easy expansion of the number of outputs
  • Power supply 10 ... 30 VDC
  • Signal delay time 160 ns
  • Input level at RS422 / TTL (differential voltage > 0.5 V),
  • Input level at HTL differential (differential voltage > 2 V),
  • Input level at HTL asymmetric low: 0 ... 6 V, high: 8 ... 40 V
  • Input level at TTL (asymmetrical): LOW < 0.8 V, HIGH >2.0 V
  • Compact housing for mounting on 35 mm top hat rail (according to EN 60715)
  • Dimensions W x H x D = 34 x 118 x 140 mm (1,34 x 4,65 x 5,51")
Impulse Distributor for Incremental Encoder with Potential Separation, 8 Outputs

GT228

Impulse Distributor for Incremental Encoder with Potential Separation, 8 Outputs

Input format: Pulse (HTL, TTL)
Input format: Frequency (HTL, TTL)
Outputs: Pulse (HTL, TTL)
Outputs: Frequency (HTL, TTL)
  • 1 pulse input with format A, B, Z [HTL] or A, /A, B, /B, Z, /Z [RS422]
  • Input frequency up to 500 kHz with HTL or 1 MHz with RS422 / TTL
  • 8 pulse outputs, formats corresponds to those of the input signals, but with individual assignment of the output level for each output
  • BUS interface for quick and easy expansion of the number of outputs
  • Power supply 10 ... 30 VDC
  • Signal delay time 160 ns
  • Input level at RS422 / TTL (differential voltage > 0.5 V),
  • Input level at HTL differential (differential voltage > 2 V),
  • Input level at HTL asymmetric low: 0 ... 6 V, high: 8 ... 40 V
  • Input level at TTL (asymmetrical): LOW < 0.8 V, HIGH >2.0 V
  • Compact housing for mounting on 35 mm top hat rail (according to EN 60715)
  • Dimensions W x H x D = 54 x 118 x 140 mm (2,13 x 4,65 x 5,51")
Expansion module for GV series without potential separation, 4 Outputs

EV224

Expansion Module for GV series without Potential Separation, 4 Outputs

Outputs: Frequency (HTL, TTL)
Outputs: Pulse (HTL, TTL)
  • Input frequency up to 500 kHz with HTL or 1 MHz with RS422 / TTL
  • 4 pulse outputs, formats corresponds to those of the input signals, but with individual assignment of the output level for each output
  • BUS interface for quick and easy connection of the modules
  • Power supply 10 ... 30 VDC
  • Signal delay time 160 ns
  • Input level at RS422 / TTL (differential voltage > 0.5 V),
  • Input level at HTL differential (differential voltage > 2 V),
  • Input level at HTL asymmetric low: 0 ... 6 V, high: 8 ... 40 V
  • Input level at TTL (asymmetrical): LOW < 0.8 V, HIGH >2.0 V
  • Compact housing for mounting on 35 mm top hat rail (according to EN 60715)
  • Dimensions W x H x D = 34 x 118 x 140 mm (1,34 x 4,65 x 5,51")

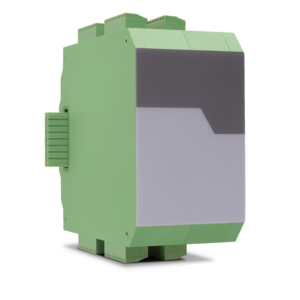

Expansion module for GV series without potential separation, 8 Outputs

EV228

Expansion Module for GV series without Potential Separation, 8 Outputs

Outputs: Frequency (HTL, TTL)
Outputs: Pulse (HTL, TTL)
  • Input frequency up to 500 kHz with HTL or 1 MHz with RS422 / TTL
  • 8 pulse outputs, formats corresponds to those of the input signals, but with individual assignment of the output level for each output
  • BUS interface for quick and easy connection of the modules
  • Power supply 10 ... 30 VDC
  • Signal delay time 160 ns
  • Input level at RS422 / TTL (differential voltage > 0.5 V),
  • Input level at HTL differential (differential voltage > 2 V),
  • Input level at HTL asymmetric low: 0 ... 6 V, high: 8 ... 40 V
  • Input level at TTL (asymmetrical): LOW < 0.8 V, HIGH >2.0 V
  • Compact housing for mounting on 35 mm top hat rail (according to EN 60715)
  • Dimensions W x H x D = 54 x 118 x 140 mm (2,13 x 4,65 x 5,51")
Expansion module for GV series with potential separation, 4 Outputs

ET224

Expansion Module for GV series with Potential Separation, 4 Outputs

Outputs: Frequency (HTL, TTL)
Outputs: Pulse (HTL, TTL)
  • Input frequency up to 500 kHz with HTL or 1 MHz with RS422 / TTL
  • 4 pulse outputs, formats corresponds to those of the input signals, but with individual assignment of the output level for each output
  • BUS interface for quick and easy connection of the modules
  • Power supply 10 ... 30 VDC
  • Signal delay time 160 ns
  • Input level at RS422 / TTL (differential voltage > 0.5 V),
  • Input level at HTL differential (differential voltage > 2 V),
  • Input level at HTL asymmetric low: 0 ... 6 V, high: 8 ... 40 V
  • Input level at TTL (asymmetrical): LOW < 0.8 V, HIGH >2.0 V
  • Compact housing for mounting on 35 mm top hat rail (according to EN 60715)
  • Dimensions W x H x D = 34 x 118 x 140 mm (1,34 x 4,65 x 5,51")
Expansion module for GV series with potential separation, 8 Outputs

ET228

Expansion Module for GV series with Potential Separation, 8 Outputs

Outputs: Frequency (HTL, TTL)
Outputs: Pulse (HTL, TTL)
  • Input frequency up to 500 kHz with HTL or 1 MHz with RS422 / TTL
  • 8 pulse outputs, formats corresponds to those of the input signals, but with individual assignment of the output level for each output
  • BUS interface for quick and easy connection of the modules
  • Power supply 10 ... 30 VDC
  • Signal delay time 160 ns
  • Input level at RS422 / TTL (differential voltage > 0.5 V),
  • Input level at HTL differential (differential voltage > 2 V),
  • Input level at HTL asymmetric low: 0 ... 6 V, high: 8 ... 40 V
  • Input level at TTL (asymmetrical): LOW < 0.8 V, HIGH >2.0 V
  • Compact housing for mounting on 35 mm top hat rail (according to EN 60715)
  • Dimensions W x H x D = 54 x 118 x 140 mm (2,13 x 4,65 x 5,51")
