Analog (V, mA)
Products found: 4Die kleinen, kostengünstiger, aber extrem leistungsstarker f/I- bzw. f/U-Wandler sind für den Schaltschrankeinbau konzipiert. Sie dienen zur Konvertierung von analogen Normsignalen (V oder mA) in ein inkrementelles (HTL, RS422 / TTL), absolutes (SSI) oder serielles (RS232 / RS485) Ausgangsformat. Die unten gezeigten Wandler können mittels Schnappmontage im Handumdrehen auf einer Hutschiene im Schaltschrank befestigt werden.
Weitere Möglichkeiten zur Umwandlung von Analogsignalen bestehen auch mit unseren Prozessanzeigen der Serie AX.

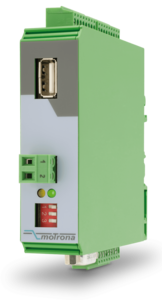

- Scalable 14 bit analog input for ±10 V or 0/4 ... 20 mA
- 4 control inputs for PNP signals [10 ... 30 VDC]
- Pulse output with format A, B, 90° [HTL] or A, /A, B, /B, Z, /Z [RS422]
- SSI output with format DATA+, DATA-, CLOCK+, CLOCK- up to 25 bit
- Power supply 12 ... 30 VDC
- Snap-on housing for top hat rail (according to EN 60715)
- Various user modes: Programmable V / f characteristics, programmable curves with optionally repeating curve cycles, additional control functions similar to a “motorized potentiometer”
- USB, RS232 and RS485 interface for programming and serial readout of the conversion result and other internal registers
- Adjustable filter functions as well as operator programmable linearization curves
- Printer mode for automatic data transfer of internal registers to a data logger or PC
- 4 analog inputs for ±10 V or 0/4 ... 20 mA (2x current / 2x voltage)
- optionally 3 control inputs for PNP signals [10 ... 30 VDC]
- IO link interface
- Power supply 12 ... 30 VDC
- Compact housing for mounting on 35 mm DIN rail
(according to EN 60715)
- 4 analog inputs 15 bits for ±10 V or 0/4 ... 20 mA
- 16 digital inputs for HTL, PNP signals [10 ... 30 VDC]
- 4 digital outputs for PNP signals [5 ... 30 V]
- Power supply 18 ... 30 VDC
- Ethernet port RJ45 interface for MQTTS protocol
- 4 USB interfaces
- RS232 to RS485 adapter for Modbus communication
- Compact housing for mounting on 35 mm top-hat rail (according to EN 60715)
- Flexible connection of various sensor signals and secure transmission of data to the cloud via TLS protocol
- MQTTS container as data layer
- Options for up to 3 pluggable EM222 extension modules
- Automatic hardware detection and dynamic adaptation of web backend and frontend
- The firmware and device parameters are protected by a multi-level security procedure and dongle
- Visualization and configuration via sens2cloud web application
- Various data packages available
- Cloud: Hosted in the EU for maximum security and availability
- Data is securely protected against unauthorized access by two-factor authentication
- Company and user profiles and their permissions can be freely configured – CI also taken into account
- Analysis of data via customizable dashboards
- Parameterization of devices
- Management and parameterization of all registered devices
- API interface for easy integration into existing third-party applications
- 4 analog inputs 15 bit for ±10 V or 0/4 ... 20 mA
- 12 digital inputs for HTL, PNP signals [10 ... 30 VDC]
- 8 digital outputs for PNP signals [5 ... 30 V]
- Power supply 18 ... 30 VDC
- PROFINET IO Device Conformance Class B
- Dual Port Ethernet with integrated switch
- RS232 to RS485 Adapter for Modbus Communication
- Extendable with various extension modules
- Device configuration possible via engineering tools and PLC controllers from various manufacturers
